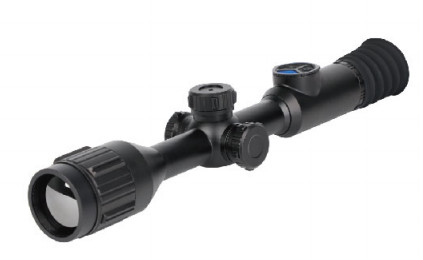

FW-RS735D Thermal imaging night vision device
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS735D |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤20mk |
|---|---|---|---|
| Focal Distance | 50mm | Display | 1440*1080 OLED |
Product Description
Features of FW-RS735D Thermal imaging night vision device
- 640*512 Vanadium Oxide Uncooled Focal Plane
- With image WIFI transmission and built-in video recording and photo taking functions
- 0.49inch color 1440*1080,High-performance display.
-
IP66 waterproof and dustproof
Specifications of FW-RS735D Thermal imaging night vision device
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 640*512 |
| Pixel spacing | 12μm |
| NETD | ≤20mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 50mm |
| Minimum focus distance | 5m |
| FOV | 8.8°*7.0° |
| Image mode | White hot, black hot, red hot.iron red |
| Basic magnification | 2.72x |
| Lens aperture | F1.0 |
| Focus | Manual focus |
| Display | 0.49inch,color OLED,resolution1440*1080 |
| Eyepiece magnification | 11.2X |
| Electronic zoom | X1.0-8.0 |
| Working | >15h |
| Vision | -5D~+5D |
| Storage | Video,Photo |
| Protection level | IP67 |
| Woking Temperature | -20℃~+50℃ |
| Storage temperature | -40℃~+60℃ |
| Weight | 1100g |
| Size | 368.2mm*84mm*77.2mm |
| Detection distance | Pepole 1.8m*0.5m 2300m |
| Car 2.3m*2.3m 3200m | |
| Identification distance | Pepole 1.8m*0.5m 1150m |
| Car 2.3m*2.3m 1600m |
