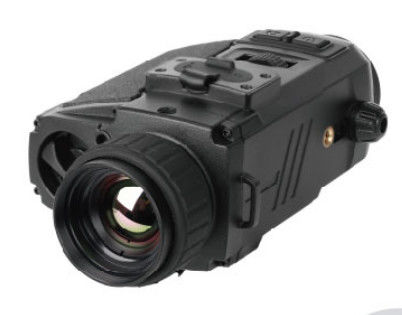

FW-DS325 Multifunctional combined tactical infrared thermal imaging
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-DS325 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Microbolometer | Display | 1440×1080 OLED |
|---|---|---|---|
| Working Time | >4h | NETD | ≤0.04℃@30℃ |
| Lens | 60mm /F1.0 | Storage | 16G |
| Highlight | Multifunctional infrared thermal imaging |
||
Product Description
Features of FW-DS325 Multifunctional combined tactical infrared thermal imaging
- 384*288 Vanadium Oxide Uncooled Focal Plane
- Free combination, multi-functional tactical telescope, long-distance precise ranging and dual-light fusion.
- 0.49inch,color OLED,resolution 1440*1080
-
IP67 waterproof and dustproof, 2 meters drop-resistant
Specifications of FW-DS325 Multifunctional combined tactical infrared thermal imaging
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 384*288 |
| Pixel spacing | 12μm |
| NETD | ≤20mk@25℃/F#=1.0 |
| Frame rate | 50Hz |
| Focal distance | 25mm/F1.0 |
| FOV | 10.6°*7.9° |
| Image mode | White hot, black hot, green hot, iron red, red hot, forest |
| Minimum focus distance | 2m |
| Focus | Manual focus |
| Display | 0.49inch,color OLED,resolution1440*1080 |
| Accuracy | ±1m |
| Electronic zoom | X1.0-8.0 |
| Picture-in-Picture | YES |
| Hot Spot Tracking | YES |
| WIFI | YES |
| Storage | 32GB |
| Electronic compass | YES |
| Laser pointer | YES |
| Low illumination module resolution | 200W |
| FOV | 18.9°*10.7° |
| Storage | Record video, take photos, and support local video playback |
| Weight | ≤420g |
| Size | 167mm*84mm*62mm |
| WIFI | YES,Connect to Android APP |
| Detection distance | Pepole 1.8m*0.5m 1100m |
| Car 2.3m*2.3m 1600m | |
| Identification distance | Pepole 1.8m*0.5m 550m |
| Car 2.3m*2.3m 800m |
