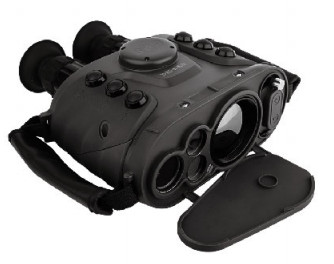

FW-S750MH Binocular infrared thermal imaging telescope
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S750MH |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤40mk@30℃ |
|---|---|---|---|
| Frame Rate | 50Hz | Display | 800*600 OLED |
Product Description
Features of FW-S750MH Binocular infrared thermal imaging telescope
- 384*288 Vanadium Oxide Uncooled Focal Plane
- GPS, electronic compass, laser ranging function.
- Built-in visible light camera makes on-site evidence collection and recording more convenient.
- High resolution 800*600,High-performance display.
-
IP67 waterproof and dustproof, 1 meters drop-resistant
Specifications of FW-S750MH Binocular infrared thermal imaging telescope
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 384*288 |
| FOV | Standard lens:9°*6.75°,Extended telephoto lens5.1°*3.8° |
| NETD | ≤40mk@30℃ |
| Frame rate | 50Hz |
| Image polarity | white/black |
| CCD FOV | 9°*6.75° |
| CCD Imager | 1/3''ccd,Pixel795(H)*596(V) |
| Image enhancement/filtering | YES |
| Wavelength | 8-14μm |
| Focus | Manual focus |
| Display | OLED,resolution 800*600 |
| Electronic zoom | X2,X3,X4 |
| Battery | Lithium battery,>4h |
| Positioning system | GPS,Positioning accuracy (latitude and longitude 5m, altitude 10m) |
| Electronic compass | Angle measurement accuracy (azimuth0.6°, elevation0.3°) |
| Protection level | IP67 |
| Woking Temperature | -30℃~+50℃ |
| Storage temperature | -40℃~+70℃ |
| Weight | 1.6kg |
| Size | 200mm*195mm*85mm |
| Interface | External power supply, external video PAL, USB interface, installation interface: 1/4''-20-UNC |
| Detection distance | Pepole 1.8m*0.5m 1900m |
| Car 2.3m*2.3m 2700m | |
| Identification distance | Pepole 1.8m*0.5m 600m |
| Car 2.3m*2.3m 900m |
