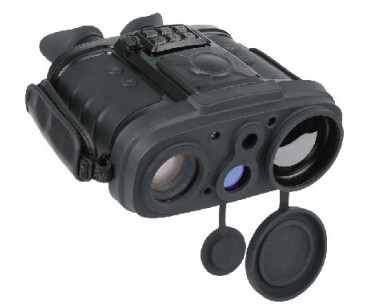

FW-S735 Multi-spectral multi-functional thermal imaging detector
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S735 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Features of FW-S735 Multi-spectral multi-functional thermal imaging detector
- 640*512 Vanadium Oxide Uncooled Focal Plane
- Built-in infrared 25/80mm dual field of view electric lens
- Multi-spectral all-weather, meeting the needs of day and night observation and law enforcement recording
- 2-megapixel low-light camera with dual-light fusion mode
-
IP66 waterproof and dustproof, 1 meters drop-resistant
Specifications of FW-S735 Multi-spectral multi-functional thermal imaging detector
| Infrared thermal imaging | Resolution:640×512,,12μm |
| Wavelength:8-14μm | |
| Dual FOV:17.5°×14°/5.5°×4.4° | |
| Visible light imaging | Resolution:5 megapixels |
| Optical fog penetration:Support | |
| FOV:59.4°×35.7°-2.3°1.3° | |
| Low-light imaging | Resolution:2 megapixels |
| FOV:8.1°×4.5° | |
| Laser Distance Measurement | Wavelength:1535nm |
| Measuring range:≥6km | |
| Distance measurement accuracy:2m | |
| Laser pointer | Visible laser indication band:625nm |
| Invisible laser indication band:830nm | |
| Positioning module | Positioning mode:BeiDou and GPS |
| Horizontal positioning accuracy:5m | |
| Elevation positioning accuracy:10m | |
| 3D electronic compass | Accuracy:0.5° |
| Dispaly | Resolution:1440×1080,OELD |
| Size | 0.49inch |
| WIFI module | Supports both hotspot (AP) and router (STA) MODE |
| Photo and video | Photo:≥80000 pcs,JPG |
| Video:≥24h MP4 | |
| Weight | ≥2.7kg |
| Working time | ≥13h |
| Size | 238×230×117mm |
| Protection level | IP67 |
| Detection distance | Pepole 1.7m*0.5m 3700m |
| Car 2.3m*2.3m 5100m | |
| Identification distance | Pepole 1.7m*0.5m 1850m |
| Car 2.3m*2.3m 2600m |
