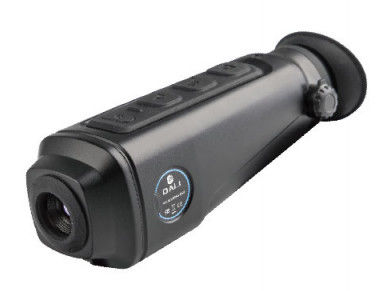

FW-S240 Monocular infrared thermal imaging telescope
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S240 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | Display | Color LCOS 800×600 |
|---|---|---|---|
| NETD | ≤30mk@25℃ | Focal Distance | 15mm |
Product Description
Features of FW-S240 Monocular infrared thermal imaging telescope
- 384*288 Vanadium Oxide Uncooled Focal Plane
- WIFI image transmission function, mobile phone APP real-time browsing, recording, taking pictures, playback and other operations
- 50Hz high frame rate, 4 kinds of pseudo-color auxiliary observation
-
IP66 waterproof and dustproof, 1 meters drop-resistant
Specifications of FW-S240 Monocular infrared thermal imaging telescope
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 384*288 |
| NETD | ≤30mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 15mm |
| FOV | 17.6°*13.2° |
| Display | color OLED,resolution 800*600 |
| Electronic zoom | 1.0-4.0X |
| Battery | Lithium battery,10h |
| Basic magnification | 1.95x~7.8x |
| Focus range | 1m~∞ |
| Wavelength | 8-14μm |
| Storage | 32G |
| Protection level | IP66 |
| Down | 1m |
| Woking Temperature | -20℃~+50℃ |
| Weight | ≤330g |
| Size | 185mm*60mm*60mm |
| WIFI | USB Type-C |
| Video | Pal |
| Detection distance | Pepole 1.8m*0.5m 1000m |
| Car 2.3m*2.3m 1400m | |
| Identification distance | Pepole 1.8m*0.5m 345m |
| Car 2.3m*2.3m 480m |
