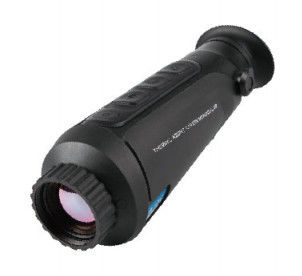

FW-S253G Monocular infrared thermal imaging telescope
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S253G |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤40mk@F1.0 |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1440*1080 OLED |
| Highlight | infrared thermal imaging telescope |
||
Product Description
Features of FW-S253G Monocular infrared thermal imaging telescope
- 384*288 Vanadium Oxide Uncooled Focal Plane
- GPS, electronic compass, laser ranging function.
- Built-in visible light camera makes on-site evidence collection and recording more convenient.
- High resolution 1440*1080,High-performance display.
-
IP66 waterproof and dustproof, 1 meters drop-resistant
Specifications of FW-S253G Monocular infrared thermal imaging telescope
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 384*288 |
| Pixel spacing | 12μm |
| NETD | ≤40mk@30℃ |
| Frame rate | 50Hz |
| Focal distance | 35mm |
| FOV | 10.7°*8.0° |
| Image mode | White hot, black hot, red hot.iron red |
| Basic magnification | 2.3x |
| Image transmission | WIFI Real-time image transmission, supports mobile phone APP image browsing, photo taking and video recording functions |
| Focus | Manual focus |
| Display | 0.39inch,color OLED,resolution1440*1080 |
| Accuracy | ±1m |
| Electronic zoom | X1.0-4.0 |
| Battery | Lithium battery,>4h |
| Basic magnification | 2.3x~9.2x |
| Focus range | 1m~∞ |
| Wavelength | 8-14μm |
| Storage | 32G |
| Protection level | IP66 |
| Down | 1m |
| Woking Temperature | -20℃~+50℃ |
| Storage temperature | -40℃~+60℃ |
| Weight | 0.45kg |
| Size | 200mm*71mm*71mm |
| WIFI | DC5V/2A(Micro USB) |
| Detection distance | Pepole 1.8m*0.5m 1000m |
| Car 2.3m*2.3m 1500m | |
| Identification distance | Pepole 1.8m*0.5m 500m |
| Car 2.3m*2.3m 790m |
