FW-HI68 Handheld Thermal Imager with 12μm Pixel Pitch and Uncooled Vanadium Oxide Detector

  • FW-HI68 Handheld Thermal Imager with 12μm Pixel Pitch and Uncooled Vanadium Oxide Detector
Place of Origin China
Brand Name Forward
Model Number FW-HI68
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Uncooled Vanadium Oxide Focal Plane Detector Resolution 400×300
Pixel Pitch 12μm Temperature Measurement Range -20℃～+650℃
Spectral Range 8μm - 14μm
Highlight

Uncooled Vanadium Oxide Detector Thermal Imager

,

12μm Pixel Pitch Thermal Imager

,

Handheld Thermal Imager
Leave a Message
Product Description

Descriptions of FW-HI68 Handheld Thermal Imager



This product is a portable temperature measurement tool that integrates high precision, fast response and non-contact temperature measurement. It uses advanced infrared sensing technology and is suitable for a variety of scenarios such as human body temperature screening and object surface temperature detection. It is an ideal choice for family health monitoring, industrial testing, medical assistance and epidemic prevention in public places.

Features of FW-HI68 Handheld Thermal Imager

  • 4.3-inch touch screen, supports point, line, frame and other temperature measurement rules
  • The temperature measurement range is up to 650℃,±2℃ or ±2% with high-precision temperature measurement to meet industrial-grade requirements
  • Thermal imaging resolution640×512, visible light pixels 8 million
  • 0.5m close-up distance, effectively ensuring temperature accuracy within 5m
  • With IP54 protection level, it can be used in light rain environment
  • Large-capacity lithium battery, supports fast charging, single battery fully charged in 2.5 hours
  • Supports 256G storage, can store hundreds of hours of video and tens of thousands of thermal images
  • With over 300,000 temperature measurement points, the image is clear and detailed.
  • The lens is interchangeable, supporting 0.5x, 2x, 3x lens options

 Specifications of FW-HI68 Handheld Thermal Imager


Thermal imaging parameters
Detector Type Uncooled Vanadium Oxide Focal Plane Detector
Resolution 640×512
Pixel Pitch 12μm
Spectral Range 8μm - 14μm
NETD ≤40mk@f/1.0
Lens and FOV 10mm;Horizontal:25°;Vertical:18°
Focus Mode Fixed focus; Manual focus；Electric focus, automatic focus, laser assisted focus
Close shooting distance 0.5m
Noise Reduction 2D/3D Noise Reduction
Temperature measurement range -20℃ to +650℃
Temperature measurement error Max(±2℃,±2%)
Temperature measurement method Central point, hot and cold spots; 10 point temperature measurement, 10 line temperature measurement, 10 area temperature measurement
Color Palette Supports 8 pseudo colors: white heat, black heat, fusion, rainbow, golden autumn, midday, iron red, amber
Visible light parameters
Resolution 800w
Focus Mode Fixed focus
Display resolution 800×600
Display Size 4.3 inches, LCD touch screen
Other parameters
Digital zoom 1-8x
Sound and light warning Support buzzer sound alarm
Storage function Support MicroSD storage card, up to 256G
Fault Detection Memory card status detection; storage space detection
Machine function Support laser pointer; support Wi-Fi; support Bluetooth
Alarm linkage Support over-temperature alarm linkage capture, video recording and buzzer alarm
USB interface Type C
Power supply mode Built-in removable lithium battery or DC5V power supply
Standby time ≥4h
Working Temperature 20℃ to +50℃
Protection level IP54
Size 284.5mm×127mm×125mm
Weight ≤1.2kg
Bracket Optional tripod with 1/4 inch thread interface
Drop height 2m bare metal drop

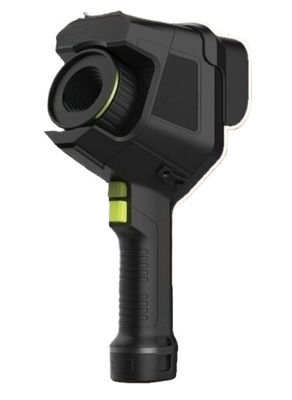

 FW-HI68 Handheld Thermal Imager with 12μm Pixel Pitch and Uncooled Vanadium Oxide Detector 0FW-HI68 Handheld Thermal Imager with 12μm Pixel Pitch and Uncooled Vanadium Oxide Detector 1
