8μm 14μm Spectral Range FW-HI48 Handheld Thermal Imager with Uncooled Vanadium Oxide Focal Plane Detector
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-HI48 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detector Type | Uncooled Vanadium Oxide Focal Plane Detector | Resolution | 400×300 |
|---|---|---|---|
| Pixel Pitch | 12μm | Temperature Measurement Range | -20℃～+650℃ |
| Spectral Range | 8μm - 14μm | ||
| Highlight | Uncooled Vanadium Oxide Thermal Imager,8μm Spectral Range Thermal Imager,14μm Spectral Range Thermal Imager |
||
Product Description

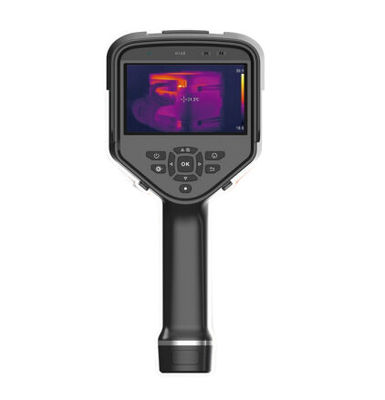

Descriptions of FW-HI48 Handheld Thermal Imager
This product is a portable temperature measurement tool that integrates high precision, fast response and non-contact temperature measurement. It uses advanced infrared sensing technology and is suitable for a variety of scenarios such as human body temperature screening and object surface temperature detection. It is an ideal choice for family health monitoring, industrial testing, medical assistance and epidemic prevention in public places.
Features of FW-HI48 Handheld Thermal Imager
- 4.3-inch touch screen, supports point, line, frame and other temperature measurement rules
- The temperature measurement range is up to 650℃,±2℃ or ±2% with high-precision temperature measurement to meet industrial-grade requirements
- Thermal imaging resolution640×512, visible light pixels 8 million
- 0.5m close-up distance, effectively ensuring temperature accuracy within 5m
- With IP54 protection level, it can be used in light rain environment
- Large-capacity lithium battery, supports fast charging, single battery fully charged in 2.5 hours
- Supports 256G storage, can store hundreds of hours of video and tens of thousands of thermal images
- With over 300,000 temperature measurement points, the image is clear and detailed.
- The lens is interchangeable, supporting 0.5x, 2x, 3x lens options
Specifications of FW-HI48 Handheld Thermal Imager
| Thermal imaging parameters | |
| Detector Type | Uncooled Vanadium Oxide Focal Plane Detector |
| Resolution | 400×300 |
| Pixel Pitch | 12μm |
| Spectral Range | 8μm - 14μm |
| NETD | ≤40mk@f/1.0 |
| Lens and FOV | 10mm;Horizontal:25°;Vertical:18° |
| Focus Mode | Fixed focus; Manual focus；Electric focus, automatic focus, laser assisted focus |
| Close shooting distance | 0.5m |
| Noise Reduction | 2D/3D Noise Reduction |
| Temperature measurement range | 20℃ to +650℃ |
| Temperature measurement error | Max(±2℃,±2%) |
| Temperature measurement method | Central point, hot and cold spots; 10 point temperature measurement, 10 line temperature measurement, 10 area temperature measurement |
| Color Palette | Supports 8 pseudo colors: white heat, black heat, fusion, rainbow, golden autumn, midday, iron red, amber |
| Visible light parameters | |
| Resolution | 800w |
| Focus Mode | Fixed focus |
| Display resolution | 800×600 |
| Display Size | 4.3 inches, LCD touch screen |
| Other parameters | |
| Digital zoom | 1-8x |
| Sound and light warning | Support buzzer sound alarm |
| Storage function | Support MicroSD storage card, up to 256G |
| Fault Detection | Memory card status detection; storage space detection |
| Machine function | Support laser pointer; support Wi-Fi; support Bluetooth |
| Alarm linkage | Support over-temperature alarm linkage capture, video recording and buzzer alarm |
| USB interface | Type C |
| Power supply mode | Built-in removable lithium battery or DC5V power supply |
| Standby time | ≥4h |
| Working Temperature | -20℃ to +50℃ |
| Protection level | IP54 |
| Size | 284.5mm×127mm×125mm |
| Weight | ≤1.2kg |
| Bracket | Optional tripod with 1/4 inch thread interface |
| Drop height | 2m bare metal drop |
