FW-TS02 Thermal imaging sights Night Hunting Police Security
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-TS02 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 500m-2400m | Display Type | 1024×768 OLED |
|---|---|---|---|
| Accuracy | ≥ 98% | Distance Measurement Accuracy | ±2 M |
| NETD | ≤ 40 MK | ||
| Highlight | FW-TS02 Thermal Imaging Sights,Night Hunting Thermal Imaging Sights,Police Security Thermal Imaging Sights |
||
Product Description

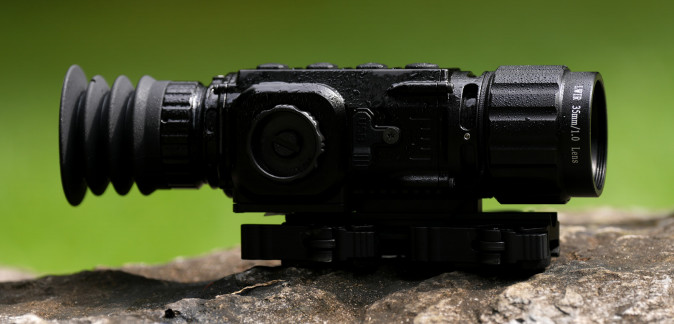

Descriptions of FW-TS02 Thermal imaging sights
The TS series infrared thermal imaging scope is an infrared thermal imaging product designed for nighttime observation and aiming. This product has the advantages of clear images, small size, low power consumption, high reliability, strong environmental adaptability and impact resistance; easy installation and simple operation, suitable for night hunting, outdoor sports and other purposes.
Specifications of FW-TS02 Thermal imaging sights
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane | |
| Resolution | 640×512 | |
| Working band | 8 μm ~ 14 μm | |
| Pixel size | 12 μm | |
| NETD | ≤ 40mK@ 25° C, @ F/1.0 | |
| Image frame rate | 50Hz | |
| Infrared lens | 35mm F1(25mm F1 ,50mm F1 can choose) | |
| FOV |
12.5° ×10° (35mm)
|
|
|
8.8° ×7° (50mm)
|
||
| Display Mode | Monocular 0.39-inch color OLED, 1024×768 | |
| Vision adjustment | -8~+3 | |
| Exit pupil | 38mm | |
| Detection distance | upright adult | 1000m(25mm)/1450m(35mm)/2000m(50mm) |
| medium truck | 2400m(25mm)/3400m(35mm)/4800m(50mm) | |
| Identification distance | upright adult | 500m(25mm)/730m(35mm)/1000m(50mm) |
| medium truck | 1200m(25mm)/1700m(35mm)/2400m(50mm) | |
| Color | Black hot / White hot / False color | |
| Electronic Amplification | 1×/2×/4× | |
| Picture-in-Picture | YES | |
| WIFI | Support image transmission | |
| Power supply mode | CR123A batteries, 4 pcs | |
| Battery operating time | ≥ 4 h | |
| Capacity | 64G(Max 512GB) | |
| Mounting interface | Picatinny Rail | |
| Weight | ≤ 650 g ( including battery ) | |
| Size | ≤ 260mm × 60mm × 80mm | |
| Electrical interface | Type-C, supports power supply, analog video output and media management | |
| Mechanical shock | ≤ 1000g | |
| Operating temperature | -20℃ ~ + 55℃ | |
| Storage temperature | -40℃ ~ + 70℃ | |
