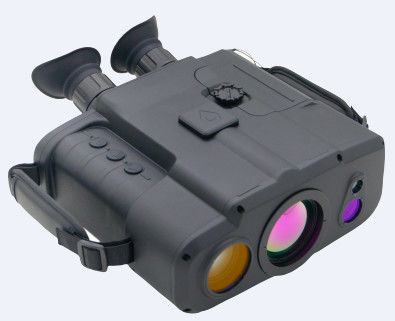

FW-XF6C Refrigeration Multifunctional Observation Instrument Concentrated Wave Cooling Infrared Thermal Imaging
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 3000m-10000m | Display Type | 1920x1080 OLED |
|---|---|---|---|
| Accuracy | ≥ 98% | Distance Measurement Accuracy | ±2 M |
| NETD | ≤ 20 MK | Positioning Accuracy | 5m (CEP), 10m (PE) |
| Highlight | FW-XF6C Refrigeration Thermal Imaging,Concentrated Wave Cooling Thermal Imaging,Multifunctional Observation Instrument Thermal Imaging |
||
Product Description
Descriptions of FW-XF6C Refrigeration multifunctional observation instrument
This product is a multifunctional infrared observation instrument with a cooling function that integrates multiple functions such as concentrated wave cooling infrared thermal imaging, visible light imaging, laser ranging, positioning and orientation. The product is equipped with the latest infrared image processing algorithm and is designed for all-weather applications that require enhanced images and ultra-long-distance detection. The dual channels of infrared thermal imaging and visible light imaging provide better target resolution capabilities; the built-in GPS/Beidou, DMC and laser ranging modules can accurately calculate the range and position of the detected target; it can realize long-distance observation and search, position calculation and other functions under day and night, rain, fog, and haze conditions.
Specifications of FW-XF6C Refrigeration multifunctional observation instrument
| Infrared thermal imaging | Detector | Medium wave, MCT refrigerated |
| NETD | ≤ 20 mK | |
| Infrared lens | 20mm~200mm,27° ×21.7°～ 2.7° ×2.2° | |
| Range | ≥ 7.5km, side of a medium truck; ≥3 km, upright adult | |
| Startup time | ≤ 6min@25℃ | |
| Resolution | 640×512 | |
| Pixel size | 15 μm | |
| Visible light | Detector | CMOS 1920×1080,2.7 μm |
| Defogging function | Color mist / black and white mist | |
| Lens | 4.7mm ～ 94mm,42.3° ×34.4°～ 2.2° ×1.8° | |
| Range | ≥ 10km, for cars；≥ 4km,for people | |
| Laser Distance Measurement | Range measurement | Minimum measuring range ≤ 80m, maximum measuring range ≥ 10 km |
| Distance measurement accuracy | ±2 m | |
| Accuracy | ≥ 98% | |
| Positioning and Orientation | Pitch angle error | ≤ 0.1° (RMS,@-81° ~81° ) |
| Positioning accuracy | 5m (CEP), 10m (PE) | |
| Azimuth accuracy | 0.2° (RMS, after calibration) | |
| Display | Display type | OLED, 1920×1080, 0.71”, Binocular |
| Vision adjustment | -5~+5 | |
| Storage | Capacity | 128GB |
| Interface | Composite Interface | 9-pin aviation plug (USB, RS232, PAL) |
| Power supply interface | 4-pin aviation plug (JX-DC-4KZ) / 12V DC | |
| Physical properties | Size | ≤ 260mm×220mm×115mm(LxWxH) |
| Weight | ≤3 Kg (including battery ) | |
| Operating temperature | 40 ℃ ~ +55 ℃ | |
| Storage temperature | 50 ℃ ~ +70 ℃ |
