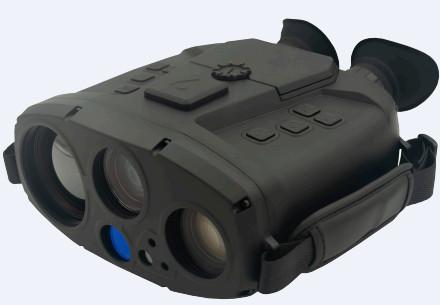

FW-XF8U Multifunctional Infrared Observation Instrument Infrared Thermal Imaging
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-XF8U |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 1500m-8000m | Display Type | 1920x1080 OLED |
|---|---|---|---|
| Accuracy | ≥ 98% | Distance Measurement Accuracy | ±1 M |
| NETD | ≤ 40 MK | Positioning Accuracy | 5m (CEP), 10m (PE) |
| Highlight | FW-XF8U Multifunctional infrared observation instrument,Multifunctional infrared observation instrument,FW-XF8U infrared observation instrument |
||
Product Description
Descriptions of FW-XF8U Multifunctional infrared observation instrument Infrared thermal imaging
This product is an uncooled multifunctional infrared observation instrument that integrates infrared thermal imaging, low-light, visible light, laser ranging and laser indication. The product is equipped with the latest infrared image processing algorithm and is designed for all-weather applications that require enhanced images and long-distance detection. The three imaging channels of infrared, low-light and visible light provide powerful target resolution capabilities; the built-in GPS/Beidou, DMC and laser ranging modules can accurately calculate the range and position of the detected target; it can realize observation and search, position calculation, intelligence data link networking, fire control and strike auxiliary positioning under day and night, rain, fog and haze conditions.
Specifications of FW-XF8U Multifunctional infrared observation instrument Infrared thermal imaging
| Infrared thermal imaging | Detector | UFPA, 640×512, 12 μm |
| NETD | ≤ 40 mK | |
| Infrared lens | 70mm F1.15, 6.3° ×5° ±5% | |
| Range | ≥ 4 km, side of a medium truck; ≥ 1.5 km, upright adult | |
| Visible light | Detector | CMOS 1920×1080, 1/2.8 |
| Resolution | 1350 ×1080 | |
| Lens | WFOV 44° ×34° , NFOV 2.4° ×1.8° ±5% | |
| Range | ≥ 8km, for cars；≥ 3km,for people | |
| Laser Distance Measurement | Range measurement | Minimum measuring range ≤ 50m, maximum measuring range ≥ 7.1 km |
| Distance measurement accuracy | ±1 m | |
| Accuracy | ≥ 98% | |
| Positioning and Orientation | Pitch angle error | ≤ 0.1° (RMS,@-81° ~81° ) |
| Positioning accuracy | 5m (CEP), 10m (PE) | |
| Azimuth accuracy | 0.2° (RMS, after calibration) | |
| Display | Display type | OLED, 1920×1080, 0.71”, Binocular |
| Exit pupil diameter | 8 mm | |
| Storage | Capacity | 32-256GB |
| Power supply | Battery Type | ICR 18650, 4 sections |
| Battery life | ≥ 5 h | |
| Interface | Communication interface | USB,RS232 |
| Video Interface | PAL,HDMI | |
| Physical properties | Size | 240mm×210mm×100mm (L×W×H) |
| Weight | ≤ 2.3 Kg (including battery ) | |
| Laser pointer | Invisible laser | 850nm, 30mW |
| Visible laser | 520nm(Green), 30mW |
