FW-XF68U Binocular Infrared Observation Instrument Infrared Night Vision Reconnaissance Multifunctional Observation Instrument
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-XF68U |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 1000m-9600m | Display Type | 1280x1024 OLED |
|---|---|---|---|
| Battery | >5h | Wavelength | 905nm |
| Range | 10m~1.5Km | Accuracy | ±2m |
| Highlight | FW-XF68U Infrared night vision,Binocular infrared observation instrument,Multifunctional observation instrument Infrared night vision |
||
Product Description
Descriptions of FW-XF5U Binocular infrared observation instrument

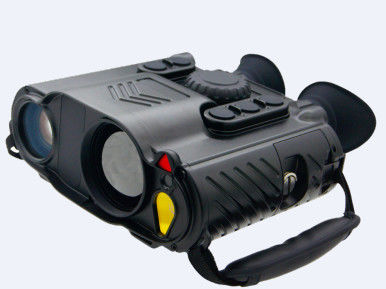

This product is an uncooled multifunctional infrared observation instrument that integrates infrared thermal imaging, visible light imaging, laser ranging, positioning and orientation. The product is equipped with the latest infrared image processing algorithm and is designed for all-weather applications that require enhanced images and long-distance detection. The dual channels of infrared thermal imaging and visible light imaging provide better target resolution capabilities; the built-in GPS/Beidou, DMC and laser ranging modules can accurately calculate the range and position of the detected target; it can realize observation and search, position calculation and other functions under day and night, rain, fog and haze conditions.
Specifications of FW-XF5U Binocular infrared observation instrument
| Infrared thermal imaging | Detector | Uncooled focal plane |
| NETD | ≤ 35 mK | |
| FOV | 8.7° × 7°, 8× electronic zoom | |
| Resolution | 640 × 512 | |
| Pixel spacing | 12 μm | |
| Range | ≥ 2.4 km, for cars, ≥ 1.0km, for people | |
| Color | 10 colors | |
| Visible light | Detector | CMOS |
| Resolution | 1350 ×1080 | |
| FOV | 40° × 32° ~4.2° ×3.2°;10× optical zoom, 12× digital zoom | |
| Range | ≥ 9.6km, for cars；≥ 4km,for people | |
| Display | Display type | 1280×1024 OLED, Binocular |
| Vision adjustment | -5-(+5) | |
| Storage | Capacity | 64GB |
| Power | Video ≥ 2 hours; BMP images ≥ 10,000 | |
| Power supply | Battery Type | ICR 18650, 4 sections |
| Battery life | ≥ 5 h | |
| Interface | Data Interface | USB |
| Video Interface | PAL | |
| Physical properties | Size | 215mm×200mm×75mm (L×W×H) |
| Weight | 1.8 Kg (including battery and lens cover) | |
| Protection level | IP67 | |
| Operating temperature | -20℃ ~ +55℃ | |
| Storage temperature | -40℃ ~ +70℃ | |
| Function | WIFI | Image transmission and control |
| GPS | 5m (CEP), 10m (PE) | |
| Laser Distance Measurement | Minimum distance ≤ 30m, maximum distance ≥ 6km (side of car, visibility 12km) | |
| Laser pointer | 520nm 30mW | |
| Compass | ≤ 0.5° (RMS) | |
| Location | Yes | |
| Picture-in-Picture | Yes | |
| Image Fusion | Yes |
