2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-XF5U |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 2800m | Display Type | 1920x1080 OLED |
|---|---|---|---|
| Battery | >6h | Wavelength | 905nm |
| Range | 10m~1.5Km | Accuracy | ±2m |
| Highlight | Infrared Observation Instrument Binocular,2800m Detection Distance Binocular,Infrared Night Vision Binocular |
||
Product Description

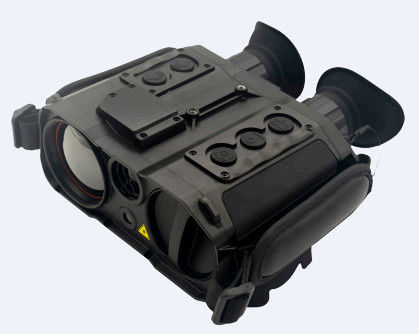

Descriptions of FW-XF5U Binocular infrared observation instrument
MP5-U is a binocular uncooled infrared observation instrument that integrates multiple functions such as infrared night vision reconnaissance, laser ranging, positioning and orientation. The product is equipped with the latest infrared image processing algorithm and is designed for all-weather applications that require enhanced images and long-distance detection. The built-in GPS, DMC and laser ranging modules can tell users the precise target range and location. It can be widely used in various scenarios such as night law enforcement, police security, environmental monitoring, terrain mapping and target reconnaissance.
Specifications of FW-XF5U Binocular infrared observation instrument
| Infrared thermal imaging | Detector | Uncooled focal plane, 640×512, 12 μm |
| NETD | ≤ 40 mK | |
| FOV | 8.8° ×7° | |
| Laser Distance Measurement | Wavelength | 905nm |
| Range | 10m~1.5Km | |
| Accuracy | ±2m | |
| Laser pointer | Visible laser | 520nm 30mW |
| Location | Self-positioning accuracy | Horizontal 5m, Elevation 10m |
| Target positioning accuracy | ≤ 20m@1Km | |
| Directional | Azimuth accuracy | 1° (RMS) |
| Pitch angle accuracy | 0.5° (RMS) | |
| Display | Display type | 1920x1080, OLED, Binocular |
| Vision adjustment | -5-(+5) | |
| Storage | Capacity | 32GB~256GB |
| Power | Video ≥ 4 hours; BMP images ≥ 10,000 | |
| Power supply | Battery Type | ICR 18650, 4 sections |
| Battery life | ≥ 6 h | |
| Interface | Data Interface | USB |
| Video Interface | PAL | |
| Communication interface | RS232 | |
| External power supply | DC 12V (±3V) | |
| WiFi | Video transmission, function control | |
| Physical properties | Size | 185mm×170mm×80mm (L×W×H) |
| Weight | ≤ 1.4 Kg (including battery and lens cover) | |
| Protection level | IP65 | |
| Operating temperature | -20℃ ~ +55℃ | |
| Storage temperature | -40℃ ~ +70℃ |
