Slide Line Test Tool Accurate Inflating Pressure Indication of 0.1 Level with Nitrogen Medium
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | Slide Line Test Tool |
| Minimum Order Quantity | 1 set |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Input Pressure | (0-1)MPa | Maximum Output Pressure | (0-1)bar(14.5psi) |
|---|---|---|---|
| Inflating Pressure Indication Accuracy | 0.1 Level | Working Medium | Nitrogen |
| Highlight | Nitrogen Medium Slide Line Test Tool,0.1 Level Slide Line Test Tool |
||
Product Description

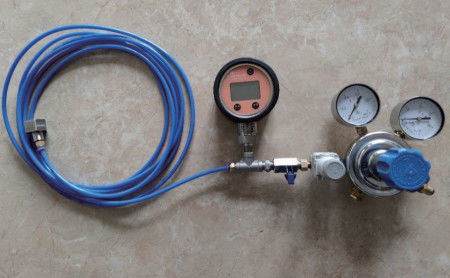

Descriptions of Inflation Tool--Shock Absorber Inflation Tool
Used to test the tightness of aircraft slide pipelines. Reduce the gas source pressure (nitrogen cylinder) to less than 0.6MPa through the first-stage pressure reducing valve, and then connect to the second-stage pressure reducer to fix the output pressure at 10psi pressure input.
A safety pressure relief valve is installed on the first-stage pressure reducer, which can automatically release the pressure in the pipeline that is higher than the normal value to prevent the output pressure from being higher than the working pressure value due to the abnormal function of the first-stage pressure reducing valve, which may cause equipment damage. Within the normal working pressure, the safety pressure relief valve does not release pressure.
A safety pressure relief valve is installed on the first-stage pressure reducer, which can automatically release the pressure in the pipeline that is higher than the normal value to prevent the output pressure from being higher than the working pressure value due to the abnormal function of the first-stage pressure reducing valve, which may cause equipment damage. Within the normal working pressure, the safety pressure relief valve does not release pressure.
Specifications of Inflation Tool--Shock Absorber Inflation Tool
| Maximum input pressure | (0-1)MPa |
| Maximum output pressure | (0-1)bar(14.5psi) |
| Medium | Nitrogen |
| Inflating pressure indication accuracy | 0.1 level |
| Working medium | Nitrogen |
| Hose length | 5m |
