ATI Series Tire Inflation Tools Solutions for Tire Maintenance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | ATI Series Tire Inflation Tools |
| Minimum Order Quantity | 1 set |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | ATI Series Tire Inflation Tools,Tire Maintenance Tire Inflation Tools |
||
|---|---|---|---|
Product Description
Descriptions of Tire Inflation Tools--ATI Series Tire Inflation Tools
The ATI series aviation tire inflation tool is specifically designed for inflating aircraft tires, ensuring normal tire pressure and ensuring flight safety. This product is easy to operate and has overvoltage protection to avoid cost waste caused by overcharging and deflation.
Features of Tire Inflation Tools--ATI Series Tire Inflation Tools
- Digital and pointer pressure instruments are available. The standard accuracy level of the digital pressure gauge is 0.2, and the highest accuracy level can reach 0.02. The standard accuracy rating of the pointer pressure gauge is 1.0
- It can provide a variety of pressure measuring joints for Airbus, Boeing and ComAC models
- Equipped with a gas pressure reducing valve, connected to the gas cylinder for direct use, reducing the pressure to a size that can be directly inflated
- Ergonomic length design, comfortable and convenient operation
- Multiple inflatable connectors to choose from, suitable for all models
- Multiple types of inflation control valves are available for selection, such as four-way type and aluminum valve type

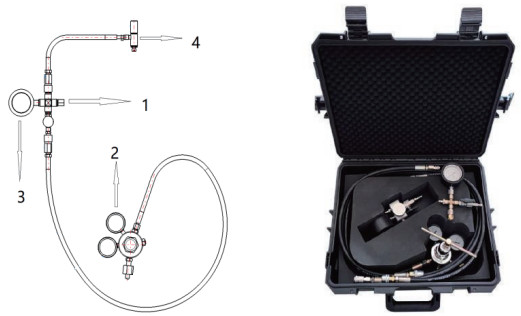

Product composition
| Number | Component Name | Optional specifications |
| 1 | Basic package | Pipeline+control valve. The inflation valve is ATI-2011-LF (aluminum) |
| 2 | Air source pressure reducing component | Brass material pressure reducing component: output pressure (0-2) MPa Stainless steel material pressure reducing component: output pressure (0-2) MPa |
| 3 | pressure gauge | Pointer pressure gauge: range (0-2) MPa, accuracy level 1.0, accuracy level 1.0 Digital pressure gauge: range (0-500) Psi, accuracy level 0.2 |
| 4 | Inflation joint | Quick plug: H-5265 (compatible with 8V); H-4660A (compatible with 12V1) single-stage threaded type: C010P03 (compatible with 8V1); C09P039 (compatible with 12V1) Double stage threaded type: CQT2023B (compatible with 8V1); CQT2023A (compatible with 12V1) |
| 5 | packing box | 5040 packaging box, optional custom inner mold or universal sponge for internal filling |
Selection Guide
| Part No. | Contains components | |||||
| ATI-MSLB | piping | control valve | pressure reducing valve | pointer table | (12V1+8V1)thread head | packing box |
| ATI-MSLBB | 8V1 thread head | |||||
| ATI-MSLAB | 12V1 thread head | |||||
| ATI-MQB | 12V1+8V1 Double fast plug | |||||
| ATI-MQBB | 8V1 Quick plug | |||||
| ATI-MQAB | 12V1 Quick plug | |||||
| ATI-DSLB | Digital display meter | (12V1+8V1)thread head | ||||
| ATI-DSLBB | 8V1 thread head | |||||
| ATI-DSLAB | 12V1 thread head | |||||
| ATI-DQB | 12V1+8V1 Double fast plug | |||||
| ATI-DQAB | 12V1 Quick plug | |||||
| ATI-DQBB | 8V1 Quick plug | |||||
