Advanced Drone Detection Module for Anti-Drone System Countermeasure Series
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Advanced Drone Detection Module,Anti Drone System Countermeasure Module |
||
|---|---|---|---|
Product Description
Drone Detection Module of Anti-drone System
Descriptions of Drone Detection Module
It is a professional module product designed to integrate drone detection capabilities into anti-drone equipment. It detects and identifies drones by collecting and classifying radio signals in a certain airspace and recognizes drone signals through spectrum interfaces to simplify hardware design and reduces software dev analysis. DM2 adopts standard elopment complexity.
Features of Drone Detection Module
- Passive tech: Only receives signal,no transmission
- Model tectable:Linkage between detection and countermeasure, autonomous target acquiring and countermeasure
- Outputs:Number, model,frequency, time,detected
- Compact:Integrated design, weighs only 380g.
- Remote maintenance:Remotely updatable
- Agile development:Built-in software for independent work or secondary development

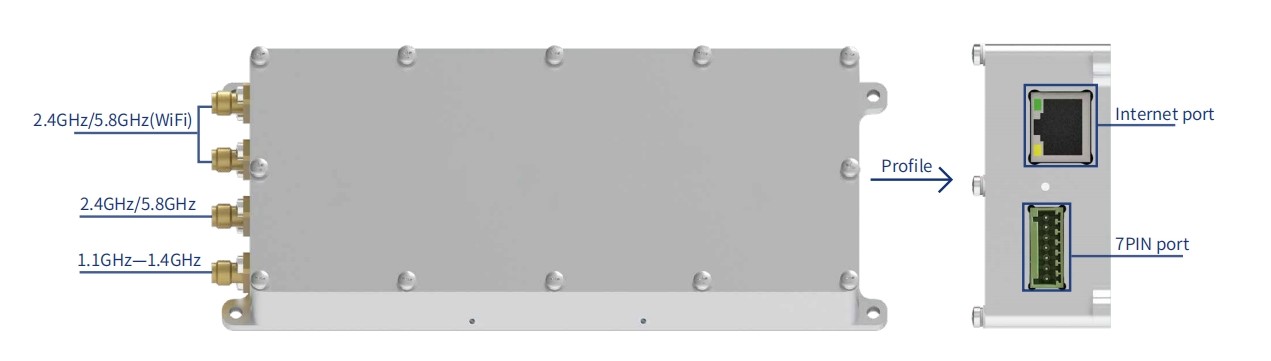

- Standard interface:SMA RF interface
- Low consumption:Power consumption less than 5w
Specifications of Drone Detection Module
|
Drone models detectable
|
DJI, AUTEL and some DIYs and FPVs
|
|
Frequency
|
1.1GHz-1.4GHz,2.4GHz,5.8GHz
|
|
Power consumption
|
≤5W
|
|
Power supply
|
DC 9-36V
|
|
Weight
|
～380g
|
|
Dimension
|
(L*W*H)167mm*83mm*42mm
|
|
Protection grade
|
IP65
|
|
Work temperature
|
-20℃~65℃
|
