Compact and Powerful 4K Resolution 10x Optical Zoom 3-Axis Small Gimbal for Any Project
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 1-2 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/years |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 4K Resolution Small Gimbal,3-Axis Small Gimbal,10x Optical Zoom Small Gimbal |
||
|---|---|---|---|
Product Description

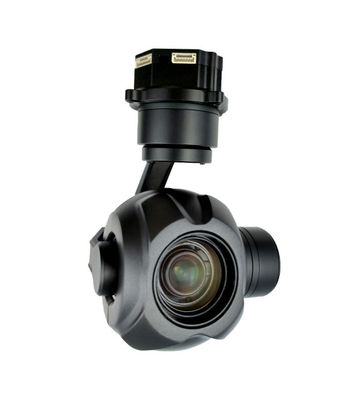

4K resolution 10x optical zoom 3-axis small gimbal
Descriptions of 4K resolution 10x optical zoom 3-axis small gimbal:
4K is a single EO small gimbal integrated a 4K resolution 90x mixed zoom camera and a high-precision 3-axis stabilizing PTZ. It adopts network IP output and control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, lightweight and low power consumption; The visible light camera adopts 8 mega effective pixel COMS SENSOR. The system supports serial port, network, and SBUS control cameras and PTZ, RTSP stream output, supporting local TF storage.
Feature:
90x mixed zoom 4K resolution;
170ms low delay RTSP output;
IP control and output;
Ground station display&control;
Light weight gimbal,360g;
TF card storage.
Specifications:
| Voltage | DC 12V-26.2V | |
| Power Supply | Dynamic 5W | |
| Gimbai Feature | Roll Angle | -45°~+45° |
| Pitch angle | -45°~+120° | |
| Yaw angle | -290°~+290° | |
| Pitch and roll jitter angle | ±0.02° | |
| Horizontal jitter angle | ±0.03° | |
| One-click restore | One-click restore to the initial position | |
| adjustable gimbal speed | Low speed at big zom status and fast speed control at small zoom status.Adaptively speed control based on zooming of daylight sensor. | |
| Control way | IP,SBUS,UART control(Optional with PWM control) | |
| Visible light Camera Para |
Sensor | 1/2.8 inch 8 mega effective pixels CMOS SENSOR |
| Optical zoom | 10x HD optical ZOOM LENS,f=5.15±5%~47.38±5%mm | |
| AF time | Real time fast focusing,focusing time<1s | |
| video output | RTSP strem IP network output,4K 1080P video stream local TF card storage |
|
| Field angle(FOV) | D:WIDE 69.5°±5% TELE7.95°±5% H:WIDE 61.5°±5% TELE7.00°±5% V:WIDE 35.0°±5% TELE3.97°±5% |
|
| Dimensions | Φ:148mm H:132mm | |
| Working environment | -10℃ to +55℃/20% to 80% RH | |
| Storage environment | -20℃ to +60℃/20% to 95% RH | |
| Main applications | UAV aerial photography | |
| Weights | 360±10g | |
