Omni-directional Laser Strike Device for UAV 6s Data Update Early Warning Detection
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Early Warning Detection Distance | ≥5Km (false Alarm Rate :10-6, Detection Probability :95%) | Minimum Detection Distance | 180m |
|---|---|---|---|
| Data Update Rate | 6s | ||
| Highlight | Omni-directional Laser Strike Device,Early Warning Laser Strike Device,UAV Laser Strike Device |
||
Product Description

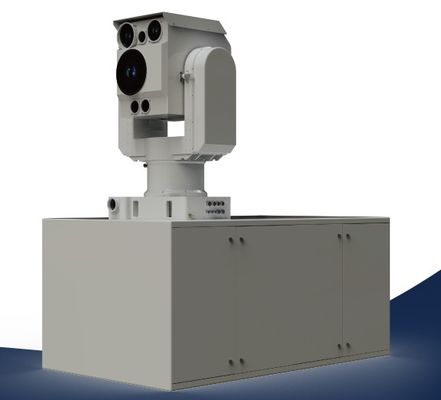

Omni-directional Laser Strike Device for UAV
Descriptions of Omni-directional Laser Strike Device for UAV
The rapid advancement in drone technology has led to unauthorized drone activities becoming a significant security challenge.There is an urgent need for a more efficient and precise defense mechanism.In response to this,we are proud to introduce our compact omni-directional laser strike system. Leveraging cutting-edge technology,exceptional precision, and easy deployment capabilties,this system emerges as the optimal choice for countering various low-altitude security risks.
Upon completing the specfied coaling and battery energy storage capacities,this device operates in intervals of 20 seconds of continuous emission,constituting ane operational time unit,and can sustain this operation far six such units consecutively. This continuity ensures the capability for sustained and stable strikes duning crucial moments.Additionally,it boasts a 360-degree continuous rotation capabillty, ensuring comprehensive coverage without blind spots.Regardless of the complexity of low-altitude security threats faced,it can respond swifty and deliver energy with pinpoint accuracy.It is particularty well-suited for safeguarding critical infrastructure requiring stringent security measures,managing security for major events,and controlling unauthorized drone activties in sensitive areas.
Features of Omni-directional Laser Strike Device for UAV
- Omni-directional Countermeasure
- Quick Response
- Precision Strikes
- High-Energy Output
- Continuous Operation
Operating Mode and Energy of Omni-directional Laser Strike Device for UAV
- Battery Rated Capacity:≥5kw·h
- Power Supply:220V±10%,50Hz
- Single Emission Duration:≥20s
- Water Cooling Machine Rated Cooling Time:≤15min
- Battery Rated Charging Time (from 10%to 90%):≤4h
System Configuration of Omni-directional Laser Strike Device for UAV
- C2 System: Computer,Communication Device
- ATP System: Electro-optical Tracking,Optical Emission,Light Guide Box,Servo Turntable
- Laser System: Laser Emitter,Water Cooling Unit,Laser Battery
Optical and Tracking Performance of Omni-directional Laser Strike Device for UAV
- Electro-optical Tracking Wavelength: Visible light, Infrared
- Electro-optical Tracking Range: Azilmuth 360%, Nelevatlon -5°to 80°
- Electro-optical Tracking Acauracy: Better than 2μrad(RMS)
- Laser Ranging Operational Wavelength: 1.535μm
- Laser Ranging Frequency: 1Hz, 5Hz
- Laser Ranging Accuracy: Better than 2m
- Guidance Capture Time: ≤5s (External guidance accuracy better than 0.3°, maximum rotation of 180° )
- Electro-optical Tracking Range: ≥2km
- Laser Ranging Distance: ≥1.5km
- Laser illumination Distance: 1km
Laser Performance of Omni-directional Laser Strike Device for UAV
- Main Laser Emitter Operational Wavelength: 1μm
- Main Laser Emitter Power: ≥5000w
- Continuous Emission Time: ≥20s
- Main Laser Destructive Range: ≥1km
Specifications of Omni-directional Laser Strike Device for UAV
| Weight | ≤ 800km |
| Operating Temperature | -20℃ to 55℃(light emission possible after completing thermal standby) |
| Operating Environment | 20℃ temperature, 50%humidity, 20km visibility, medium to weak turbulence intensity,no rain or snow. |
|
Storage Temperature
|
-20℃ to 60℃
|
| Components Dimensions |
ATP; Φ1m×1m
|
| Water Cooling Unit Cabinet | 950×770×1350 mm |
| Laser and Control Cabinet |
600×800×1300 mm
|
| Average Power Consumption | ≤15kw |
| Startup Power | ≤45kw |
| Ingress Protection Rating | IP 65 |
