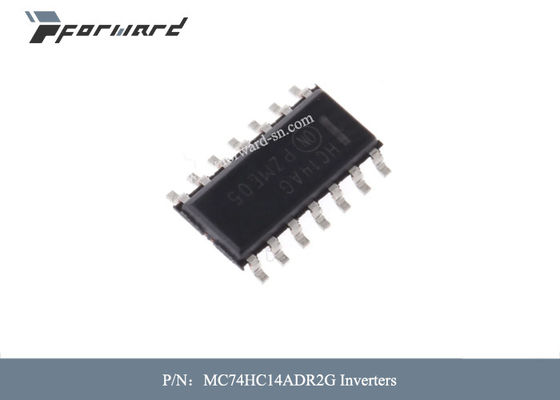

74HC Aviation Parts MC74HC14ADR2G Inverters Supply Voltage Max 6V
| Model Number | MC74HC14ADR2G |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Onsemi | Product Category | Inverters |
|---|---|---|---|
| Number Of Circuits | 6 Circuit | Logic Family | 74HC |
| Supply Voltage - Max | 6 V | Supply Voltage - Min | 2 V |
| Maximum Operating Temperature | + 125 C | Mounting Style | SMD/SMT |
| VPackage / Case | SOIC-14 | High Level Output Current | - 5.2 MA |
| Highlight | 74HC Aviation Parts,Aviation Parts 6V,MC74HC14ADR2G |
||
Product Description
Aviation Parts MC74HC14ADR2G Inverters Supply Voltage - Max 6 V
Descriptions of Aviation Parts:
The MC74HC14A is identical in pinout to the LS14, LS04 and the HC04. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC14A is useful to “square up” slow input rise and fall times. Due to hysteresis voltage of the Schmitt trigger, the HC14A finds applications in noisy environments.
Features of Aviation Parts:
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 A
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance With the JEDEC Standard No. 7.0 A Requirements
- Chip Complexity: 60 FETs or 15 Equivalent Gates
- NLV Prefix for Automotive and Other Applications Requiring
- Unique Site and Control Change Requirements; AEC−Q100
- Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Manufacturer: | onsemi |
| Product Category: | Inverters |
| RoHS: | Details |
| Number of Circuits: | 6 Circuit |
| Logic Family: | 74HC |
| Logic Type: | CMOS |
| Supply Voltage - Max: | 6 V |
| Supply Voltage - Min: | 2 V |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-14 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | onsemi |
| Function: | Inverter Schmitt Trigger |
| High Level Output Current: | - 5.2 mA |
| Low Level Output Current: | 5.2 mA |
| Operating Supply Voltage: | 2 V to 6 V |
| Product Type: | Inverters |
| Propagation Delay Time: | 75 ns, 30 ns, 15 ns, 13 ns |
| Series: | MC74HC14A |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.011923 oz |
