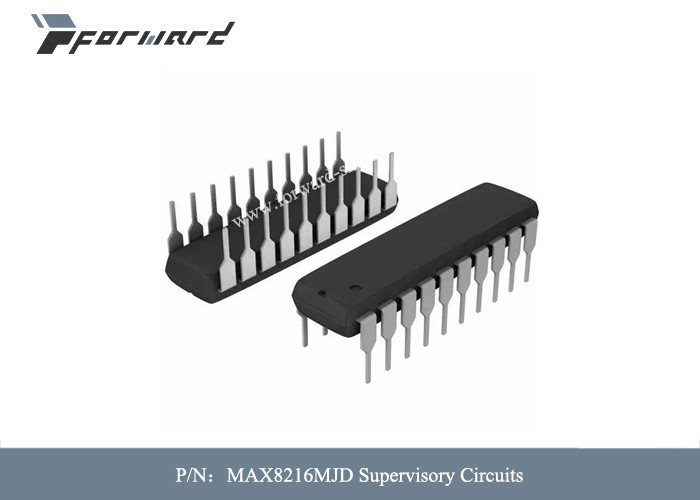

MAX8216MJD Aviation Parts Supervisory Circuits Reset Delay Time 200 Ms
| Model Number | MAX8216MJD |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Nalog Devices Inc. | Product Category | Supervisory Circuits |
|---|---|---|---|
| Mounting Style | Through Hole | Package / Case | CDIP-14 |
| Threshold Voltage | 5 V, 15 V, Adjustable | Number Of Inputs Monitored | 5 Input |
| Output Type | Open Drain | Manual Reset | No Manual Reset |
| Watchdog Timers | No Watchdog | Battery Backup Switching | No Backup |
| Highlight | Supervisory Circuits Aviation Parts,Aviation Parts 200ms,MAX8216MJD |
||
Product Description
Aviation Parts MAX8216MJD Supervisory Circuits Reset Delay Time 200 ms
Descriptions of Aviation Parts:
The MAX8215 contains five voltage comparators; four are for monitoring +5V, -5V, +12V, and -12V, and the fifth monitors any desired voltage. The MAX8216 is identical, except it monitors ±15V supplies instead of ±12V. The resistors required to monitor these voltages and provide comparator hysteresis are included onchip. All comparators have open-drain outputs. These devices consume 250µA max supply current over temperature.
Features of Aviation Parts:
-
♦ 4 Dedicated Comparators plus 1 Auxiliary Comparator
♦ 5V Dedicated Comparator Has ±1.25% Accuracy
♦ -5V, +12V, -12V, +15V, -15V Dedicated Comparators Have ±1.5% Accuracy
♦ Overvoltage/Undervoltage Detection or Programmable Delay Using Auxiliary Comparator
♦ Internal 1.24V Reference with ±1% Initial Accuracy
♦ Wide Supply Range: 2.7V to 11V
♦ Built-In Hysteresis
♦ 250µA Max Supply Current Over Temp.
♦ Independent Open-Drain Outputs
♦ All Precision Components Included
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Supervisory Circuits |
| RoHS: | N |
| Type: | Voltage Supervisory |
| Mounting Style: | Through Hole |
| Package / Case: | CDIP-14 |
| Threshold Voltage: | 5 V, 15 V, Adjustable |
| Number of Inputs Monitored: | 5 Input |
| Output Type: | Open Drain |
| Manual Reset: | No Manual Reset |
| Watchdog Timers: | No Watchdog |
| Battery Backup Switching: | No Backup |
| Reset Delay Time: | 200 ms |
| Supply Voltage - Max: | 11 V |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Accuracy: | 1.5 % |
| Series: | MAX8216 |
| Packaging: | Tube |
| Brand: | Analog Devices / Maxim Integrated |
| Chip Enable Signals: | No Chip Enable |
| Height: | 3.56 mm (Max) |
| Length: | 19.94 mm (Max) |
| Operating Supply Current: | 250 uA |
| Pd - Power Dissipation: | 727 mW |
| Power Fail Detection: | No |
| Product Type: | Supervisory Circuits |
| Factory Pack Quantity: | 25 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 2.7 V |
| Width: | 7.87 mm (Max) |
| Part # Aliases: | MAX8216 |
| Unit Weight: | 0.042329 oz |
